ACH Pull Integration Guide

This document describes how to integrate the ACH Pull (direct bank account debit) feature via the OwlPay Harbor API, allowing your end users to initiate deposits directly from their linked U.S. bank accounts.

⚠️

The ACH Pull feature is currently available only to Applications registered as US-based companies. Your business operating location and company registered address must be located in a state where OwlPay holds a Money Transmitter License (MTL).

📘

Authorization Email Required

Before executing an ACH Pull transaction, OwlPay will send an authorization email to the Customer requesting their approval. The email will clearly identify which Application is initiating the pull request.

Prerequisites

1. Your Application has the ACH_PULL payment method enabled
2. The Customer has completed KYC verification (status: VERIFIED)
3. The Customer's sub-account (an FBO bank account for on-ramp) has been provisioned (status: ONBOARDED)

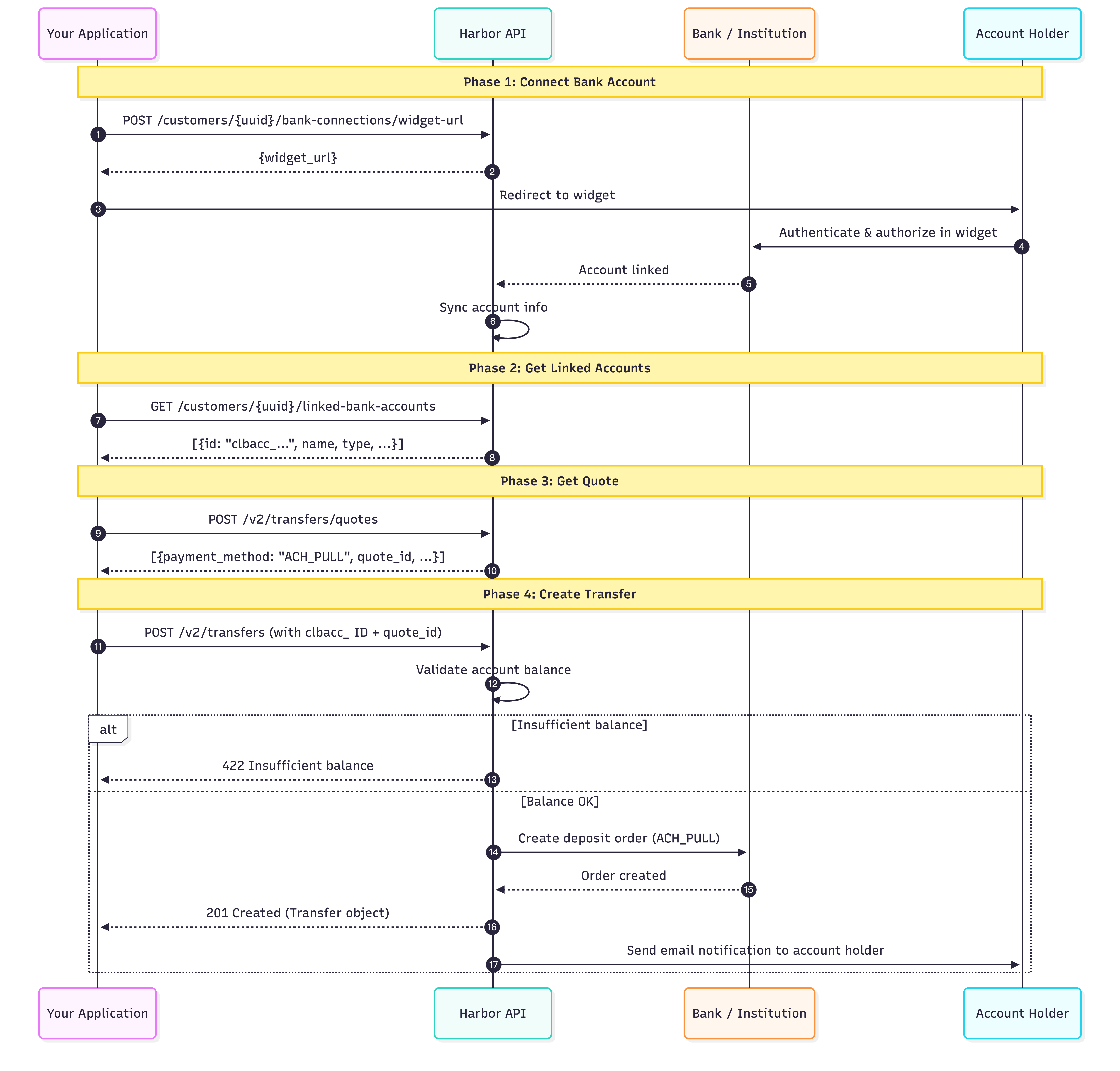

Flow Overview

1. Connect Bank    → User links a bank account via Widget
2. List Accounts   → Retrieve the list of linked bank accounts
3. Get Quote       → Get an ACH_PULL quote
4. Create Transfer → Submit a transfer with the linked account ID
5. Email Notification → OwlPay sends a notification email to the account holder

Important: When an ACH Pull transfer is created, OwlPay will send a notification email to the bank account holder informing them of the upcoming debit. Please ensure the user is aware of this process.

Step 1: Connect Bank Account

First, generate a bank connection Widget URL for the customer and redirect them to complete bank account authorization.

Request

curl --location --request POST 'https://harbor-sandbox.owlpay.com/api/v1/customers/{{CUSTOMER_UUID}}/bank-connections/widget-url' \
--header 'Content-Type: application/json' \
--header 'Accept: application/json' \
--header 'X-API-KEY: {{API_KEY}}' \
--data-raw '{
    "redirect_url": {
        "success": "https://yourapp.com/bank-connected",
        "failed": "https://yourapp.com/bank-failed"
    }
}'

Response (200)

{
    "data": {
        "widget_url": "https://bank-connection.owlpay.com/connect?token=..."
    }
}

Integration

Present the returned widget_url to the user via redirect or iframe. After the user completes bank login and account authorization in the Widget, the system will automatically sync account information.

Sandbox Test Credentials

When testing in the Sandbox environment, search for and select MX Bank in the connection widget. Use the following credentials to simulate successful connection scenarios:

1. Basic Connection

• Search Bank Name: MX Bank
• Username: mxuser
• Password: Any value (e.g., password)
• Expected Result: Successful connection with status CONNECTED.

2. OAuth Connection

• Search Bank Name: MX Bank (OAuth)
• Action:
  1. Search for "MX Bank (OAuth)" in the widget.
  2. You will be redirected to a simulated authorization page.
  3. Click the Authorize button.
• Expected Result: Simulated success and redirection back to your application.

Step 2: List Linked Accounts

After the user completes Widget authorization, call this API to retrieve the list of linked bank accounts.

Request

curl --location --request GET 'https://harbor-sandbox.owlpay.com/api/v1/customers/{{CUSTOMER_UUID}}/linked-bank-accounts' \
--header 'Accept: application/json' \
--header 'X-API-KEY: {{API_KEY}}'

Response (200)

{
    "data": [
        {
            "id": "clbacc_45b93a4affca4bc2818dc189264b6e07",
            "name": "Checking Account",
            "type": "CHECKING",
            "connection": {
                "institution_name": "Chase Bank",
                "status": "CONNECTED",
                "is_syncing": false,
                "last_synced_at": "2026-03-21T08:30:00Z"
            }
        }
    ]
}

To query a single account, use: GET /api/v1/customers/{customer_uuid}/linked-bank-accounts/{linked_bank_account_id}

Step 3: Get ACH Pull Quote

Before initiating a transfer, get a quote to confirm the exchange rate, fees, and settlement amount.

Request

curl --location --request POST 'https://harbor-sandbox.owlpay.com/api/v2/transfers/quotes' \
--header 'Content-Type: application/json' \
--header 'Accept: application/json' \
--header 'X-API-KEY: {{API_KEY}}' \
--data-raw '{
    "on_behalf_of": "{{CUSTOMER_UUID}}",
    "source_amount": "100.00",
    "source_currency": "USD",
    "destination_currency": "USDC"
}'

Response (200)

The response includes quotes for multiple payment methods. Select the item where payment_method is ACH_PULL.

[
    {
        "id": "quote_f03AirZ3ZY...KBtFQfZtPDYv",
        "payment_method": "ACH_PULL",
        "source_amount": "100.00",
        "source_currency": "USD",
        "destination_amount": "99.50",
        "destination_currency": "USDC",
        "fee": "0.50",
        "quote_expire_date": "2026-03-21T09:30:00Z"
    }
]

Save the id (i.e., quote_id) from the ACH_PULL quote — it is required in the next step to create the transfer.

Step 4: Create ACH Pull Transfer

Use the clbacc_ ID from Step 2 and the quote_id from Step 3 to create the transfer.

⏳

Settlement Time Notice: ACH Pull transfers typically settle in T+2 business days. For more details on fund availability and payment locks, see Settlement and Payment Lock Time.

Request

curl --location --request POST 'https://harbor-sandbox.owlpay.com/api/v2/transfers' \
--header 'Content-Type: application/json' \
--header 'Accept: application/json' \
--header 'X-API-KEY: {{API_KEY}}' \
--header 'Idempotency-Key: {{Idempotency-Key}}' \
--data-raw '{
    "on_behalf_of": "{{CUSTOMER_UUID}}",
    "quote_id": "{{QUOTE_ID}}",
    "application_transfer_uuid": "{{YOUR_ORDER_ID}}",
    "source": {
        "payment_instrument": {
            "linked_bank_account_id": "clbacc_45b93a4affca4bc2818dc189264b6e07"
        }
    },
    "destination": {
        "beneficiary_info": {
            "...": "Fill according to quote requirements"
        },
        "payout_instrument": {
            "address": "0x1234567890abcdef1234567890abcdef12345678"
        },
        "transfer_purpose": "SALARY",
        "is_self_transfer": true
    }
}'

Response (201 Created)

On success, returns the full Transfer object with an initial status of PENDING_CUSTOMER_TRANSFER_START.

Error Scenarios

Email Notification

When an ACH Pull transfer is successfully created, OwlPay will automatically send a notification email to the bank account holder containing:

• Debit amount and currency
• Transaction details

This email ensures the account holder is aware of the upcoming ACH debit, in compliance with regulatory requirements. No additional action is needed from the Application side for this notification.

Transfer Status Flow

We recommend listening for transfer status changes via Webhooks to keep your system updated in real time.
